Automatic floor grinding Robot | Concrete & Cement Floor Grinder Solutions
Improving the efficiency and quality of floor construction in large industrial, warehousing, commercial, and public facilities – ORCAS’ automated Flooring Grinding Robot is a high-performance equipment specifically designed for the modern needs of concrete floor grinding and polishing.
150+ Industrial flooring contractors are satisfied with Orcos Robot
advanced navigation
ntegrated dust control
multi-stage grinding
Our Floor Grinding Robots

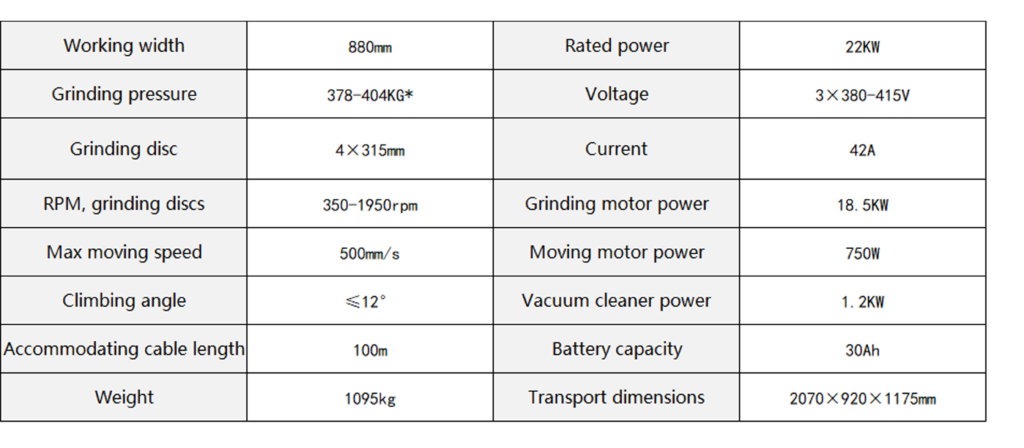

Hero 900 automatic grinding robot
Automatic dust collection reduces environmental dust pollution.
Fully automatic grinding, no need for operators to follow.
Automatic cable retraction and release, reducing contact with the ground for high safety.
Paragon 860 automatic griniding robot
Automatic dust collection, dust-free on-site construction, environmentally friendly.
World-first stepless grinding pressure, adjustable for different floor surfaces.
Pioneer 1600 automatic grinding robot
Dual grinding plates, wider grinding area, higher efficiency.
Fully automatic grinding, 24-hour operation available.World-first stepless grinding pressure, adjustable grinding pressure, suitable for various floors.

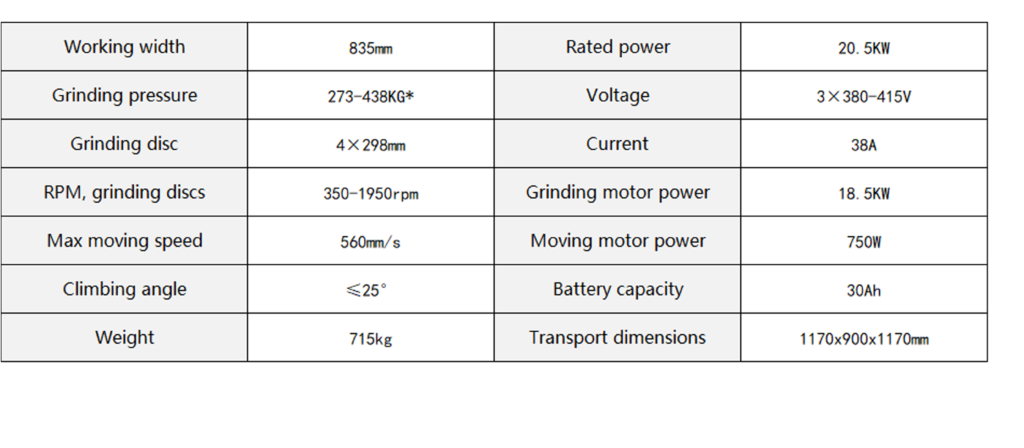

Pioneer 860 automatic grinding robot
World-first digital stepless grinding pressure adjustment. Grinding pressure can be adjusted from 273 kg to 438 kg.
Multiple grinding pressure adjustments, flat plate control.
Pioneer 680 automatic grinding robot
A highly flexible and compact floor grinding robot.
Grinding plate width: 670 mm.
Multi grinding pressure adjustments, flat plate control.

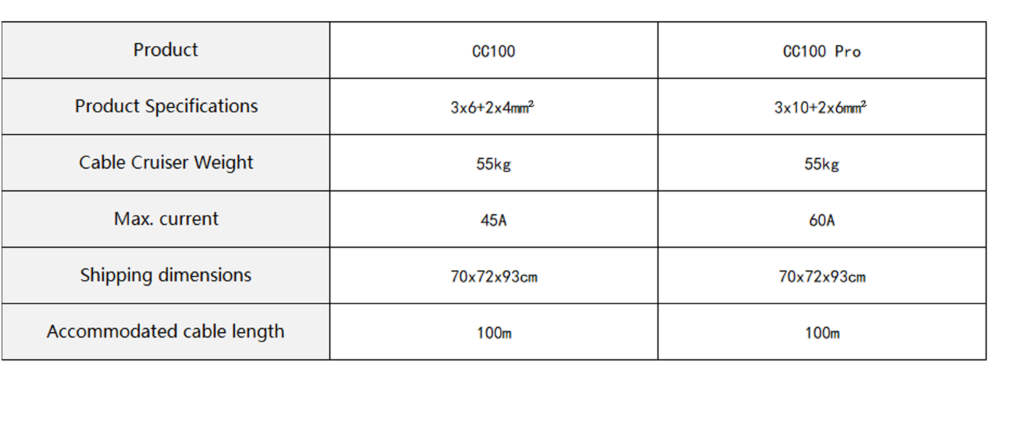

Cable Cruiser
Safe, Flexible,Portable, Labor-saving,
Easy to retract and release cable,
High Efficient, Hassle-Free Movement, Simple operation.
Our Automated Flooring Grinding Robot
HERO 900 offers a complete solution for concrete and cement floor construction, from surface preparation to final polishing.
This is not just a “robotic grinder,” it’s an intelligent construction system:
3D Navigation
✔ Laser Positioning System
✔ Automatic path planning
✔ No missed areas, no repeated grinding
✔ Suitable for large floor areas (5,000㎡+)
Multi-stage grinding
✔ Coarse Grinding
✔ Medium grinding
✔ Fine Grinding & Polishing
✔ Pre-treatment for sealing/densification
Automatic Dust Collection
✔ Suppresses dust dispersion
✔ Improves air quality during operation
✔ Meets occupational health standards
Real-time data monitoring
✔ Coverage progress reports
✔ Surface roughness/flatness measurements
✔ Construction quality records
✔ QA/QC data documentation
Gear Box Auto Lifting/lower
✔ Easy to move
✔ Easy to replace grinding discs
Automatic Obstacle Avoidance
✔Multi-sensor obstacle detection
✔Automatic deceleration or stopping
✔Automatic power cut-off and shutdown in emergencies
Intelligent Path Planning
✔ Automatic area scanning
✔ Generation of optimal grinding paths
✔ Support for regular and irregular areas
✔ Automatic recording of completed areas to avoid omissions and repetitions
Grinding Disc Protection
✔ Real-time monitoring of grinding wheel status
✔ Automatic pause upon encountering abnormal resistance
✔ Prevention of grinding wheel overload and breakage
✔ Extended lifespan of diamond grinding discs
Our Core Application Scenarios
Industrial Warehouse Grinding | Large-area consistency | Automatic coverage + polishing
Parking Lots & Basements | Dust control | Dust collection system
Factory Floor Renovation | High Flatness Restoration | Efficient GrindingSolution
Manufacturing Workshop Floors | High wear resistance and flatness | Precise CSP control
Construction continues 24 hours a day, even at night.
Autonomous navigation for large areas
Multi-stage grinding & polishing workflows
Integrated dust extraction
- Consistent surface quality, independent of operator skill
